Lithium ion 14500 battery cell Panasonic (Sanyo) UR14500AC 840mAh

  • Lithium ion 14500 battery cell Panasonic (Sanyo) UR14500AC 840mAh
  • Lithium ion 14500 battery cell Panasonic (Sanyo) UR14500AC 840mAh
  • Lithium ion 14500 battery cell Panasonic (Sanyo) UR14500AC 840mAh
  • Lithium ion 14500 battery cell Panasonic (Sanyo) UR14500AC 840mAh
  • Lithium ion 14500 battery cell Panasonic (Sanyo) UR14500AC 840mAh
Model No.︰UR14500AC
Brand Name︰Panasonic / Sanyo
Country of Origin︰Japan
Minimum Order︰100 pc
Share on:

 Total 18 Related Items
Prev1415161718

Product Description

Lithium ion 14500 battery cell Panasonic UR14500AC 840mAh

Panasonic / Sanyo UR14500AC 840mAh Specifications:

NO. Description Specification

1

Battery Model

Panasonic UR14500AC / Sanyo UR14500P

2

Rated Capacity 840mAh

3

Nominal Voltage 3.7V

4

Over-Charge Voltage Protection 4.2V

5

Over-Discharge Voltage Protection 2.5V

6

Charging Current 0.5C / 0.8A

7

Discharge current 0.2C-3C / 1.68A

8

Operation Temperature Range Charge:0°C-45°C
Discharge:-20°C-60°C

9

Cell Dimension Diameter:14.30mm
Height:49.50mm
10 Weight 20g



Impotant:

1.Never use force to install (insert) Li-ion battery.

2.Use only high quality battery charger.

3.Do not expose to heat.

4.Do not short (connect) positive,and negative contact.

5.Never keep a spare battery in you pocket,or purse (always use plastic protective battery case).

6.Do not charge unattended.Do not store you Li-ion batteries fully charge.



Application: LED lighting, flashlights, toys, camera, laptop, E-bike, E-scooter, EV (Electric Vehicle), Garden Tool, Vacuum Cleaner, ESS(Energy Storage System), UPS(Uninterruptible Power Supply).
Please notice that this cell is not for sale.
Cells can not be single used outside battery packs without PCM.

EVVA is capable of assembling different battery packs by combining these high-end battery cells and self-developed BMS based on our professional rich skills.
OEM orders are available.

Payment Terms︰TT

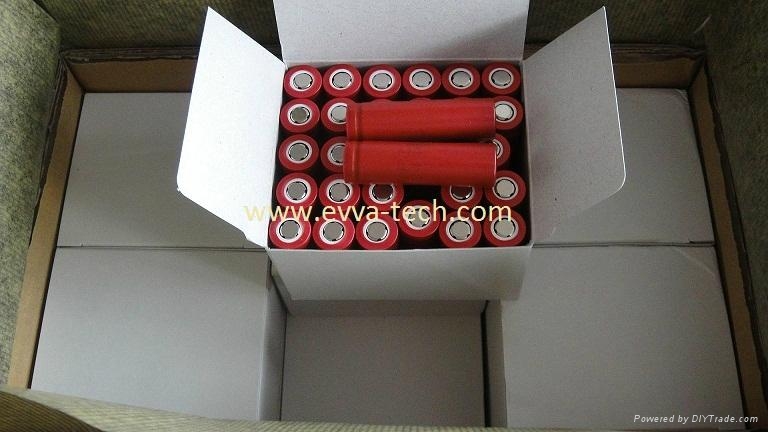

Product Image
